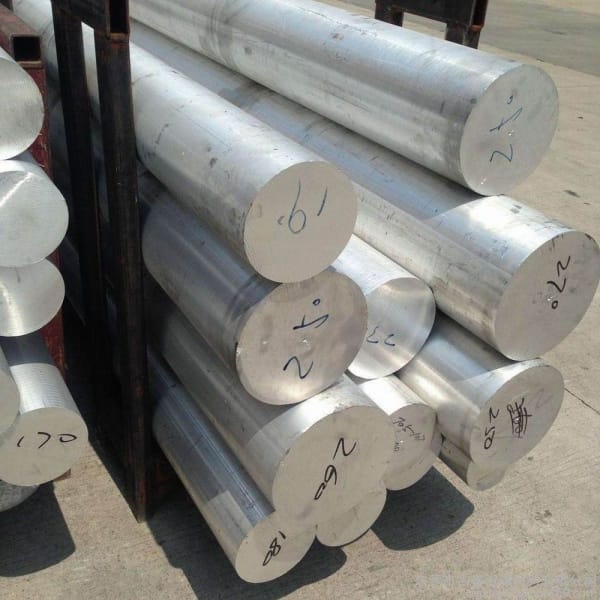

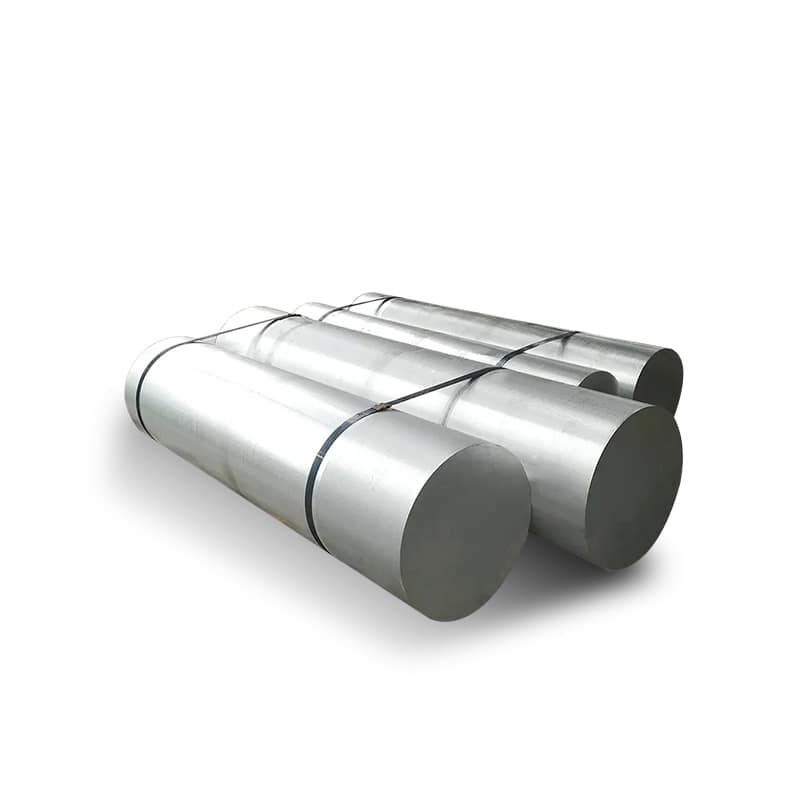

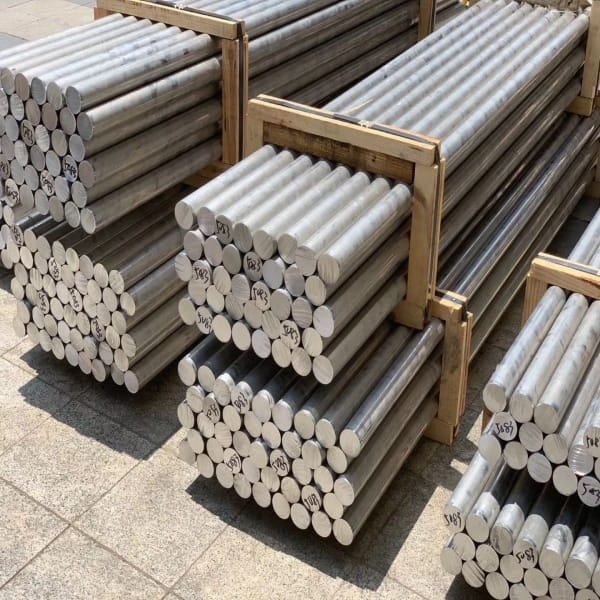

7075 Aluminum Bar
7075 aluminum alloy is an aluminum alloy with zinc as the main alloying element. It has excellent mechanical properties, showing good ductility, high strength, toughness and good fatigue resistance. Due to the presence of microsegregation, it is more brittle than many other aluminum alloys, but has significantly better corrosion resistance than 2000 alloys. It is one of the most commonly used aluminum alloys in high-stress structural applications and has been widely used in aircraft structural components.
[email protected]
Email:
+8615106880537
Whatsapp:
PRODUCT DESCRIPTION
Product Description
7075 aluminum alloy is an aluminum alloy with zinc as the main alloying element. It has excellent mechanical properties, showing good ductility, high strength, toughness and good fatigue resistance. Due to the presence of microsegregation, it is more brittle than many other aluminum alloys, but has significantly better corrosion resistance than 2000 alloys. It is one of the most commonly used aluminum alloys in high-stress structural applications and has been widely used in aircraft structural components.
Product Parameters
| Diameter | 5-650mm or customized | Length | 100-2000mm or customized |
| Certificate | ISO.SGS.BV | ||
| Standard | He, AiSi, ASTM, GB, DIN, EN ect. | ||
| Brand | 1000 Series:1050 1060 1070 1100 1200 1235 ect. 3000Series:3003 3004 3005 3104 3105 3A21 ect. 5000 Series:5005 5052 5083 5086 5154 5182 5251 5754 5A05 ect. 6000 Series:6061 6063 6082 6A02 ect. 7000 Series:7050 7475 7075 ect. 8000 Series:8A06 8011 8090 ect. |
||
| Surface | Coating, embossing, drawing, polishing, anodizing, etc. | ||
| OEMService | Punching, cutting special size, making flat surface, surface treatment, etc. | ||
| Delivery time | received.30%After deposit7-15working day | ||
| Application | Construction, shipbuilding, decoration, industry, manufacturing, machinery, hardware and other fields | ||
| Sample | Free OffersSample | ||
| Packaging | Strapping, plastic bag, film, wooden pallet Standard seaworthy export packing or according to customer requirement | ||
Chemical Composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others: Each |
Others: Total |
Al: Min. |
| 1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | – | 0.05 | 0.03 | 0.03 | – | 99.50 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | – | 0.05 | 0.03 | 0.03 | – | 99.60 |
| 1070 | 0.20 | 0.25 | 0.04 | 0.03 | 0.03 | – | 0.04 | 0.03 | 0.05 | – | 99.70 |
| 1100 | 0.95 Si Fee | 0.05~0.20 | 0.05 | – | – | 0.1 | – | 0.05 | 0.15 | 99.0 | |
| 2014 | 0.5~1.2 | 0.7 | 3.9~5.0 | 0.4~1.2 | 0.2~0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | Margin |
| 2017 | 0.2~0.8 | 0.7 | 3.5~4.5 | 0.4~1.0 | 0.4~0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | 91.5 – 95.5 |
| 2024 | 0.50 | 0.50 | 3.8~4.9 | 0.3~0.9 | 1.2~1.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | Margin |
| 3003 | 0.60 | 0.70 | 0.05~0.20 | 1.0~1.5 | – | – | 0.10 | – | 0.05 | 0.15 | Margin |
| 3A21 | 0.60 | 0.70 | 0.20 | 1.0-1.6 | 0.05 | – | 0.15 | 0.1-0.2 | – | – | Margin |
| 3004 | 0.30 | 0.70 | 0.25 | 1.0~1.5 | 0.8~1.3 | – | 0.25 | – | 0.05 | 0.15 | Margin |
| 3005 | 0.60 | 0.70 | 0.30 | 1.0~1.5 | 0.2~0.6 | 0.10 | 0.25 | 0.10 | 0.05 | 0.15 | Margin |
| 3105 | 0.60 | 0.70 | 0.30 | 0.3~0.8 | 0.2~0.8 | 0.20 | 0.40 | 0.10 | 0.05 | 0.15 | Margin |
| 5005 | 0.30 | 0.70 | 0.20 | 0.20 | 0.5~1.1 | 0.1 | 0.25 | – | 0.05 | 0.15 | Margin |
| 5052 | 0.25 | 0.40 | 0.10 | 0.10 | 2.2~2.8 | 0.15~0.35 | 0.10 | – | 0.05 | 0.15 | Margin |
| 5754 | 0.40 | 0.40 | 0.10 | 0.50 | 2.6~3.6 | 0.30 | 0.20 | 0.15 | 0.05 | 0.15 | Margin |
| 5A05 | 0.50 | 0.50 | 0.10 | 0.3-0.6 | 4.8-5.5 | – | 0.20 | – | 0.05 | 0.05 | Margin |
| 5083 | 0.40 | 0.40 | 0.10 | 0.4~1.0 | 4.0~4.9 | 0.05~0.25 | 0.25 | 0.15 | 0.05 | 0.15 | Margin |
| 6061 | 0.40~0.8 | 0.70 | 0.15~0.4 | 0.15 | 0.8~1.2 | 0.04~0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Margin |
| 6082 | 0.70~1.3 | 0.50 | 0.10 | 0.4~1.0 | 0.6~1.2 | 0.25 | 0.20 | 0.10 | 0.05 | 0.15 | Margin |
| 7075 | 0.40 | 0.50 | 1.2~2.0 | 0.30 | 2.1~2.9 | 0.18~0.28 | 5.1~6.1 | 0.20 | 0.05 | 0.15 | Margin |
Mechanical Properties
| Tensile Strength (MPa) |
Yield strength (MPa) |
ElongationRate (%) |
Hardness (HV) |
| 572 | 503 | 11 | 175 |
Physical Performance
| Density | Melting Point | modulus of elasticity | Thermal conductivity |
| 2.81 Kg/m³ | 477-635 °C | 71.7GPa | 130W/m.K |
Annealing State
| Brand | Annealing State |
| 1xxx: 1050, 1050A, 1060, 1100 | O, H12, H14, H16, H18, H22, H24, H26, H28, H111 |
| 3xxx: 3003, 3004, 3005, 3105 | |
| 5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454 | O, H22, H24, H26, H28, H32, H34, H36, H38, H111 |
| 6xxx: 6061, 6082 | T4, T6, T451, T651 |
| 2xxx: 2024 | T3, T351, T4 |
| 7xxx: 7075 | T6, T651 |
Scope of Application
| Aluminum Uses And Application Area | |
| Food Packaging | Beverage can ends, cans, bottle caps, etc. |
| Building | Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc. |
| Transportation | Auto parts, passenger car bodies, aviation ships and air cargo containers. |
| Electronic Equipment | Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc. |
| Consumer Goods | Umbrellas, cooking utensils, sports equipment, etc |
| Other | Military, color coated aluminum plate, etc. |
Packing and shipping
The company has domestic first-class professional technical consultants and a team of outstanding employees with professional skills. The main products are carbon steel/galvanized steel. Stainless steel/steel coil steel bars, galvalume, color-coated coils, profiles, steel bars, aluminum products, roof panels. Products are sold to more than 60 countries and regions in Europe, the Middle East, Southeast Asia, and Australia.
FACTORY APPEARANCE
Company As 20000 Square Meters Of Indoor Storage more Than 20,000 Tons Of Inventory, Spot Product Standard Involves European Standard American Standard British Standard Australian Standard German Standard, Now According To Customer Requirements For Product Opening Strip.Cutting.Processing.Annual sales of more than 60 milliontons.Our company owns the firs class professional technique adviser in China and the excellent staffs with professional technology.The main products are carbon steel / galvanized.
PRODUCT DESCRIPTION
We promise”complete specifications, prompt delivery, high quality, competitive price, “The unwavering supports you provide, along with the increasing requirements you put contributes to more varied high-quality products with more competitive prices we offer.Win-win situations are always our pursuit.
OUR ADVANTAGE
We have won recognition from our clients due to our good creditand good services.
